Electro-Mech LX2745 Basketball/Volleyball/WrestlingCompact Scoreboard With TOL

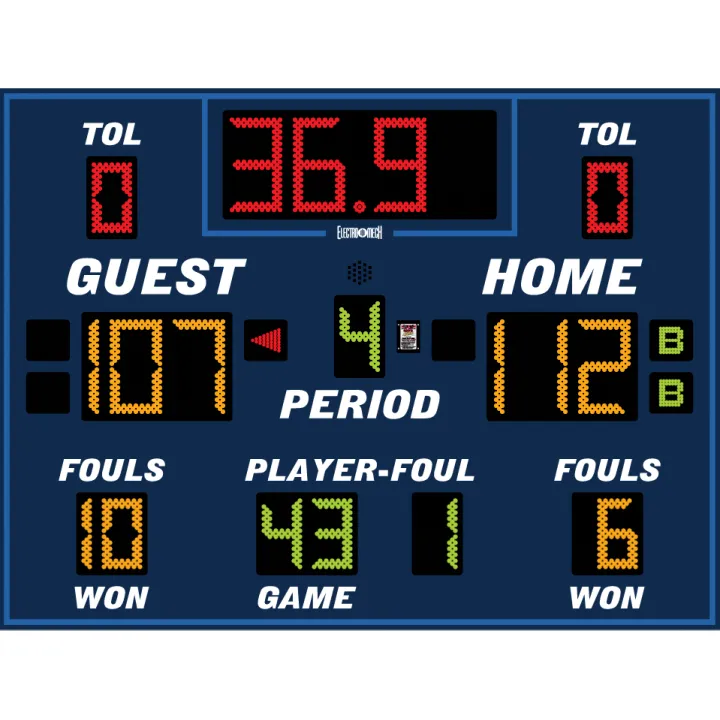

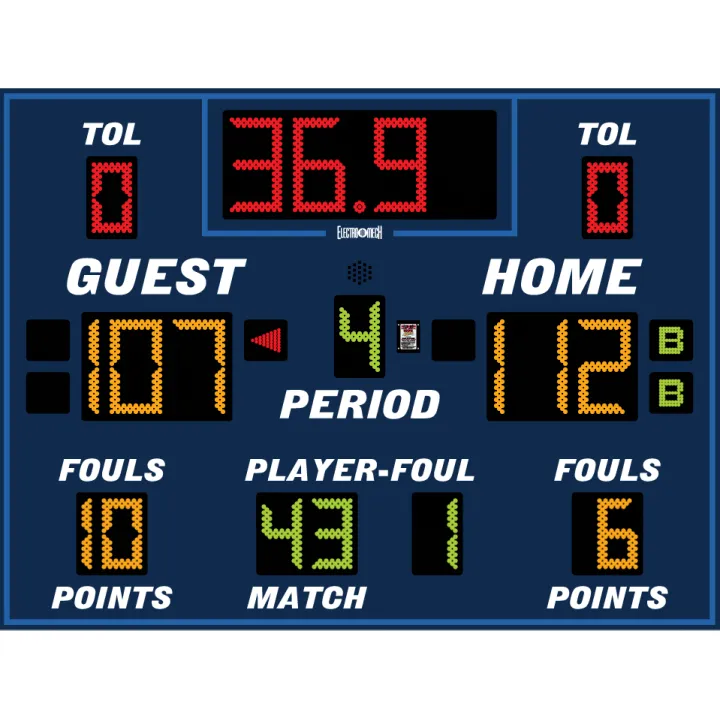

At 8 feet wide by 6 feet tall, the nearly square LX2745 is a departure from the usual Electro-Mech elongated scoreboard design for Basketball. Also unusual, but not for Electro-Mech, is the color scheme that includes green LEDs for Period, Player, Player Foul, and Bonus. Most scoreboard manufacturers offer only red and amber LEDs. In addition to the full complement of Basketball features, this scoreboard can handle Volleyball or Wrestling by using reversible captions to re-label the digits along the bottom of the cabinet.

• Dimensions:8 ft x 6 ft

• Weight:140 lb

• Digit Height:12 in, 9 in

• Electrical:120 VAC, 1.7 Amps

Standard Equipment & Features

• Single cabinet design with heavy-duty extruded aluminum framing

• Lightweight, rust free, all-aluminum construction

• Mounting hardware for permanent installation on posts without the need for on site fabrication

• Automotive-grade baked on enamel based paint applied to the scoreboard face

• Choice of 18 standard paint colors

• Choice of amber or red LED displays

• Internal horn

• Full-sized 37-key control console with LCD display

• Fifty programmable brightness levels

• Junction box and patch cable for hardwired installations

• Five-year limited warranty

• Toll-free technical support via phone and online for the life of the product

• The data output port on scoreboard cabinet supports daisy chaining additional displays

LX2745 Cutsheet
