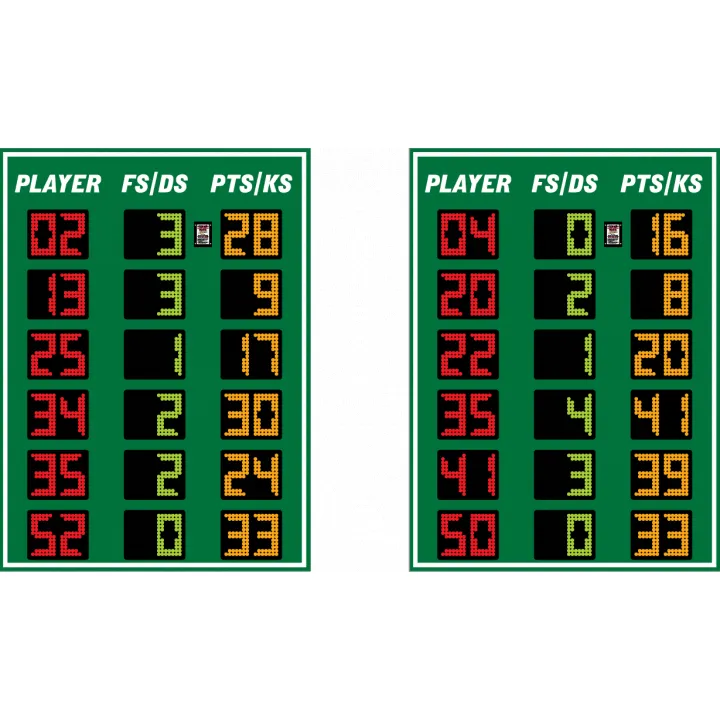

Electro-Mech LX2056 Basketball/Volleyball Player Stat Panel Set

This is the standalone version of the multi-sport stat panels included with our LX2576 and LX2556 scoreboards. They operate as a separate system from the main scoreboard using a dedicated control console. For each Player, track Points and Fouls in Basketball or Digs and Kills in Volleyball. The system can work using our standard wiring solutions, or you may operate these displays wirelessly using the reliable ScoreLink system for transmitting and receiving data.

• Dimensions:4 ft 5 in x 6 ft (each)

• Weight:80 lb (each)

• Digit Height:6 in

• Electrical:120 VAC, 2.1 amps (each)

Standard Equipment & Features

• Single cabinet design with heavy-duty extruded aluminum framing

• Lightweight, rust free, all-aluminum construction

• Mounting hardware for permanent installation on posts without the need for on site fabrication

• Automotive-grade baked on enamel based paint applied to the scoreboard face

• Choice of 18 standard paint colors

• Choice of amber or red LED displays

• LED display circuit boards conformally coated for outdoor use

• Full-sized 37-key control console with LCD display

• Fifty programmable brightness levels

• Junction box and patch cable for hardwired installations

• Five-year limited warranty

• Toll-free technical support via phone and online for the life of the product

LX2056 Cutsheet
